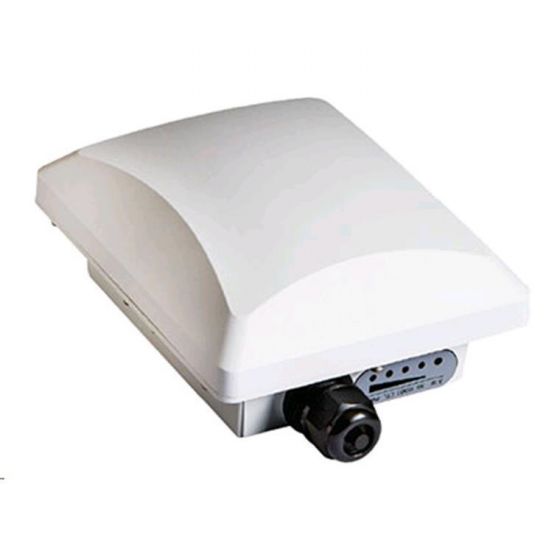

Ruckus ZoneFlex™ P300 OVERVIEW

Smart 802.11ac 5GHz Outdoor Point-to-Point, Point-to-Multipoint Wireless Bridge

The Ruckus ZoneFlex P300 is an outdoor point-to-point and point-to-multi point bridge that unleashes the promise of 5GHz 802.11ac, delivering unparalleled throughput. Backhaul throughput of over 500 Mbps opens opportunities to new business models, bridging remote locations and providing broadband services to locations not reachable before, in an affordable way.

Designed for harsh outdoor conditions, the Ruckus ZoneFlex P300 is perfect for service providers looking to easily extend branded broadband services, backhaul small cell networks, offload data traffic from small cell networks, deploy multimedia hotspots, or offer wireless broadband services where fixed line access is limited.

The ZoneFlex P300 is also ideal for hotels, schools, warehouses and other enterprises looking to extend managed wireless LANs (WLANs) across remote buildings and where Ethernet cabling is not possible.

Auto-pairing of wireless bridges, in addition to flexible mounting options, forgiving antenna pattern, and an easy-to-use aiming software, allows installers to deploy and optimize a wireless link in a short time, significantly increasing productivity and reducing deployment costs.

FEATURES

802.11ac Point to Point or Point to Multi Point Bridge
5GHz operation
20MHz, 40MHz, and/or 80MHz channelization
14dBi internal directional antenna
2 external N-Type antenna connectors
802.3af Power over Ethernet
Ruggedized for outdoor conditions: -40°C to 65°C operating temperature, IP67 rated
Maximum link distance 12 km (using internal antenna)
Dedicated radar avoidance pre scan (DFS)
PD-MRC for reliable bridge connections
Simple installation with mounting brackets included
Automatic pairing and easy aiming between bridges
Optional accessories available to enhance range & performance


BENEFITS


Wire-like throughput over the air

Based on the 802.11ac standard, the ZoneFlex P300 supports RF capacity up to 867 Mbps. With Ruckus' purpose-built directional antenna, the ZoneFlex P300 supports throughputs up to 500 Mbps and offers performance up to 100 Mbps at 8 km (LoS).*

* When used with optional external antenna

Easy installation and pairing

ZoneFlex P300 enables installers to deploy wireless bridges effortlessly. Lightweight and designed with simple and flexible mounting options.

Simple positioning and aiming

Precision aiming and optimized performance with 30-degree beamwidth antenna and sophisticated LED-based aiming software. ZoneFlex P300 proactively finds and selects the best performing channel automatically using Ruckus' patented ChannelFly channel selection algorithms.

Secure and scalable

The wireless bridge link is AES secure and can scale to support multiple networks segmented by VLANs.

10X scalability with wireless multi-node bridging

Each root bridge capable of supporting up to 10 receiving bridges.

Unmatched ROI

The wireless link offers much higher data throughput rates than T1/E1 or xDSL lines at only a fraction of the fixed line installation cost and without the recurring leased line cost. The ZoneFlex P300 is also an ideal option for backhauling small cell cellular networks.

Environmentally-friendly design

The internal dual polarized antenna not only does away the need for installing an external antenna, further simplifying the installation procedure, but also offers an aesthetically pleasing look and feel.

DEPLOYMENT

Building to Building Bridging:

ZoneFlex P300 provides an ideal solution for linking two LANs in different buildings.

Backup Link for Disaster Recovery:

ZoneFlex P300 serves as a high performance back up link for enterprise disaster recovery

Video Surveillance:

Zoneflex P300 offers reliable wireless streaming of surveillance video back to a central post

Point to Multipoint:

ZoneFlex P300 enables point to multi point backhaul bridging for up to 10 receiving bridges
