High Performance 802.11ac Wave 2 Integrated Wired/Wireless Wall Switch with DOCSIS 3.0 Connectivity

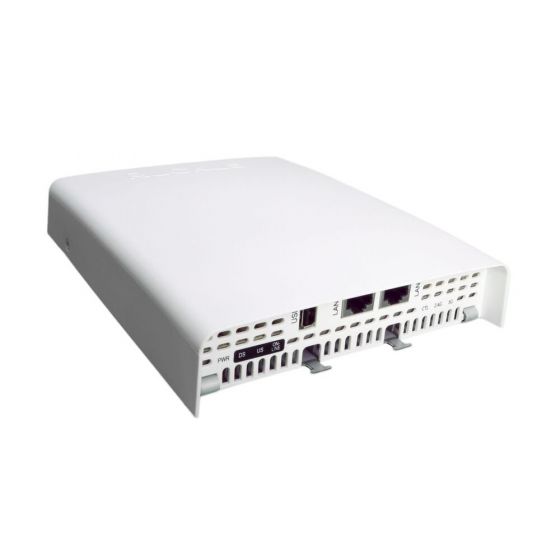

The ZoneFlex C110 is an unprecedented, highly-integrated cable modem access point designed to deliver best-in-class Wi-Fi connectivity over building-scale DOCSIS infrastructure. The C110 features a two-spatial-stream 802.11ac Wave 2 capable access point, integrated Ethernet switch, and DOCSIS 3.0 cable modem, all in a sleek, low-profile wall plate form factor that can be discretely installed over a standard electrical junction box.

The ZoneFlex C110 has been engineered from the ground up to provide a single box solution specifically to support Wi-Fi deployments in buildings with pre-existing coaxial cabling. Ideally suited for hotels, multi-dwelling-units (MDUs), and student residences where the cost of pulling new data cabling otherwise prohibits Wi-Fi installation, the C110's integrated DOCSIS 3.0 cable modem provides reliable Wi-Fi backhaul over existing coaxial cabling to an in-building or off-premise CMTS.

A dual-band wireless access point with 802.11ac Wave 2 Multi-User MIMO (MU-MIMO) support, the C110 delivers outstanding Wi-Fi performance. Efficient airtime utilization due to MU-MIMO boosts performance for Wave 2 clients while also freeing up airtime for non-Wave 2 clients, which means all clients enjoy a performance benefit.

The "mobile device ready" ZoneFlex C110 features Ruckus patented BeamFlex+ smart antennas, which adapt in real time to client device location and physical orientation, delivering consistent and reliable Wi-Fi performance. The BeamFlex+ adaptive antenna system of the ZoneFlex C110 is optimized for coverage in hotel guest rooms and MDU residences.

Equipped with two Ethernet ports for in-room access, the ZoneFlex C110 can be used to connect a range of wired network devices such as: IPTV set-top boxes and VoIP telephones, while simultaneously providing dual band 802.11ac wireless LAN connectivity. The C110 is powered via a 12V DC power adapter via a discrete and secure connection. Cable channels on the back of the C110 provide added installation flexibility and preserve access to legacy behind-wall cabling.

The ZoneFlex C110 can be deployed as a standalone device or centrally managed by Ruckus SmartZone or ZoneDirector controller platforms.

Fast Wi-Fi Connectivity

- Integrated BeamFlex+ Smart Adaptive Antenna Technology
- BeamFlex+ support for up to 2 dB of additional gain and 5 dB of interference mitigation
- Polarization Diversity with Maximal Ratio Combining (PD-MRC) ensures reliable connectivity for mobile devices
- MU-MIMO improves network performance with efficient airtime utilization to benefit both Wave 2 and non-Wave 2 clients

High-Speed Backhaul

DOSCIS 3.0 cable modem enables high-speed backhaul over existing coax infrastructure

Converged IP services

Multiple SSIDs, port-based VLANs and robust authentication options make the C110 ideal for supporting concurrent IP-based services such as VoIP, IPTV, high-speed Internet access and in-room device connectivity over both wired (over Ethernet) and wireless

Flexible Deployment Options

Enable C110's to be supported in standalone mode or centrally managed by Ruckus ZoneDirector or SmartZone controllers

Power and mounting

- Powered by 12V DC power adapter (included)
- Mounts to worldwide standard electrical outlet boxes

Integrated DOSCIS 3.0 Cable Modem

Integrated DOSCIS 3.0 cable modem featuring an enterprise class wireless access point and an integrated DOCSIS 3.0 cable modem, the C110 offers customers a simple, cost effective, and easy to manage solution for hospitality and MDU deployments.

Additive performance with BeamFlex+

BeamFlex+ adaptive antennas improve Wi-Fi signal quality by adapting to device location and orientation, which is ideal for better performance on handheld mobile devices.

802.11ac Wave 2 MU-MIMO

MU-MIMO improves network performance with efficient airtime utilization to benefit both Wave 2 and non-Wave 2 clients

Converged IP Services

Multiple SSIDs, port-based VLANs and robust authentication options make the ZoneFlex C110 ideal for supporting concurrent IP-based services such as VoIP, IPTV, high-speed Internet access and in-room device connectivity - both wired and wireless.

Channel Selection Optimizes Throughput

ChannelFly channel selection, based on throughput measurements, not just interference, chooses the best channel to give users the highest possible throughput.

Standalone or Centrally Managed

The ZoneFlex C110 can be deployed in standalone mode or centrally managed by the Ruckus ZoneDirector or SmartZone controllers.

Sleek and Compact Form Factor

Installs into any standard electrical outlet box, creating a low profile, secure design with front port access to eliminate unsightly cabling and disruptive furniture placement.
