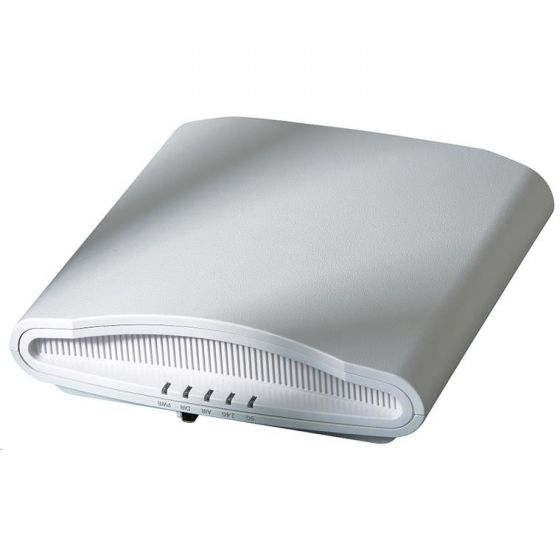

Ruckus Unleashed R710 Wave 2 Dual-Band AC2333 Wi-Fi Access Point
Ruckus Unleashed R710 Wave 2 Dual-Band AC2333 Wi-Fi Access Point
- Wireless Transmission Speed:1733Mbps
- Wireless Technology:802.11ac
- USB Ports:1
- Ethernet Ports:2
Features
Highest Performance
- Up to 2 times extended range and coverage with Ruckus BeamFlex technology: up to 5 dB of signal-to-interference and noise (SINR) improvement and up to 15dB of interference mitigation
- Ultra-reliable mobile device connectivity with BeamFlex+ dual polarized adaptive antennas
- Superior performance with 1733 Mbps (5 GHz) and 800 Mbps (2.4 GHz) of user throughput
- Concurrent support for HD IPTV, VoIP and data with support for isochronous, multicast IP video streaming
- Novel channel selection approach delivering up to 50 percent capacity gain over alternative background scanning approaches
Increased Device Density
- Unprecedented 4x4:4 and MU-MIMO to address the need of high density wireless deployments.
- Automatic interference mitigation, optimized for high-density environments
- Capable of supporting up to 500 clients
Wi-Fi Monetization
- Sensor Bluetooth Low Energy (BLE) USB port to enable proximity aware value add services such as wayfinding, custom coupons based on location, keyless entry, virtualized wallets, among others
- SPoT location triangulation services to customize the end user experience and monetize the Wi-Fi network
- SmartFlex Location and Analytics for big data end user monitoring and network monitoring
- 802.3af power mode option allowing to leverage legacy PoE switches and to easily deploy.
Specifications
Description
High-end 802.11ac Wave 2 AP with MU-MIMO and BeamFlex+
Maximum PHY rate
1,733 Mbps (5GHz)
800 Mbps (2.4GHz)
Wi-Fi technology
802.11ac Wave 2 (5GHz)
802.11n (2.4GHz)
Concurrent users
512
Radio chains:streams
4x4:4
BeamFlex gains
6dB
Max. interference mitigation
15dB
PD-MRC
Yes
Rx sensitivity
-104dBm
ChannelFly
Yes
Smart meshing
Yes
USB
Yes
Ethernet ports
2
Condition | New |
---|
