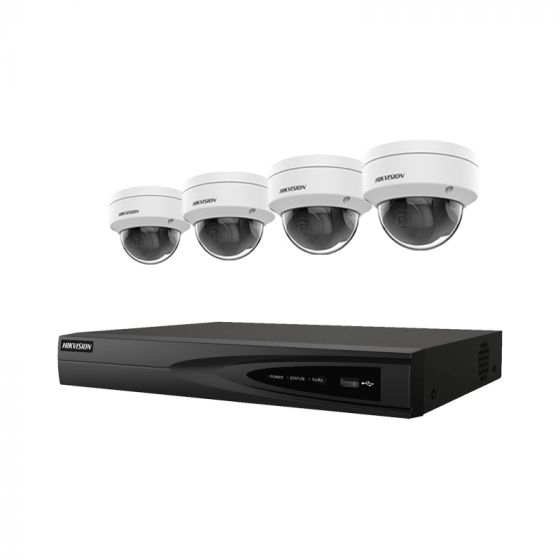

HIKVISION 4-ch 1U 4 PoE 4K NVR DS-7604NI-K1/4P + DS-2CD1143G0-I 2.8mm*4
HIKVISION 4-ch 1U 4 PoE 4K NVR DS-7604NI-K1/4P + DS-2CD1143G0-I 2.8mm*4
Ship in 2 working days
Please wait for the notification
4-ch 1U 4 PoE 4K NVR with DS-2CD1143G0-I 2.8mm*4
- Up to 4-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 40 Mbps incoming bandwidth
4-ch 1U 4 PoE 4K NVR
Video And Audio
IP Video Input 4-ch
Incoming Bandwidth 40 Mbps
Outgoing Bandwidth 80 Mbps
HDMI Output 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
VGA Output 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Decoding Capability 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Synchronous Playback 4-ch
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface 4-ch
Power ≤ 50 W
Standard IEEE 802.3 af/at
RAID
RAID Type No
Auxiliary Interface
SATA 1
Capacity Up to 8TB capacity for each disk
USB Interface 2 × USB 2.0
Alarm In/Out N/A (4/1 is optional)
General
Power Supply 48 VDC, 1.35 A
Consumption ≤ 10 W (without enabling PoE)
Working Temperature -10 to +55° C (14 to 131° F)
Working Humidity 10 to 90 %
Chassis 1U
Dimension (W × D × H) 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
≤ 1 kg (2.2 lb)
| Condition | New |
|---|
