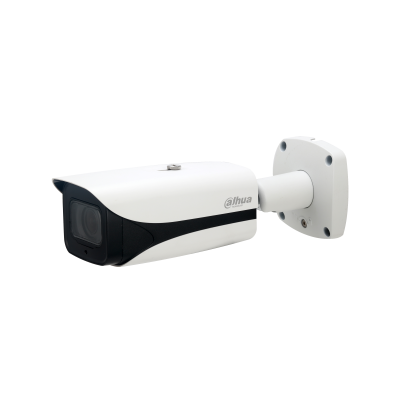

Dahua IPC-HFW5241E-Z12E

Camera

Image Sensor

1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

Effective Pixels

1920 (H) × 1080 (V)

RAM/ROM

512 MB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3 s–1/100000 s

S/N Ratio

> 56 dB

Minimum Illumination

0.002 Lux@F1.5

IR Distance

Distance up to 150 m (492 ft)

IR On/Off Control

Auto/Manual

IR LEDs

Lens

Lens Type

Motorized vari-focal

Mount Type

Board-in

Focal Length

5.3 mm–64.0 mm

Max. Aperture

F1.5

Angle of View

H: 58°–4°, V: 34°–2°

Aperture Type

Auto (HALL)

Close Focus Distance

1.0 m–1.5 m (3.28 ft–4.92 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

73m(240ft)

29m(95ft)

15m(49ft)

7m(23ft)

883m(2897ft)

353m(1158ft)

177m(580ft)

88m(289ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0˚–360˚; Tilt: 0˚–90˚; Rotation: 0˚–360˚

Artificial Intelligence

Face Detection

Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo;three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting

Perimeter Protection

Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection

People Counting

Support the counting of enter number, leave number, and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Heat Map

Yes

Video

Compression

H.265,H.264,H.264B,H.264H, MJPEG (only supported by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Streaming Capability

3 Streams

Resolution

1080P (1920 × 1080)/1.3 M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 1080P (1 fps–25/30 fps)

Sub Stream: D1 (1 fps–25/30 fps)

Third Stream: 1080P (1 fps–6 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–7424 Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC Mode

BLC/HLC/WDR (120 dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Electronic Image Stabilization (EIS)

Yes

Smart IR

Yes

Defog

Yes

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Compression

G.711a, G.711Mu, AAC, G.726, G.723

Alarm

Alarm Event

No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering;Defocus Detection;scene changing;intrusion;tripwire;aban doned object;missing object;fast moving;parking detection;loitering detection;people gathering;audio detection;people counting;face detection;voltage detection;People counting in area;Stay alarm;People No. exception detection;Queue Management

Network

Ethernet

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP ;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P

Max. User Access

20 Users

Edge Storage

NAS;FTP;SFTP;Dahua Cloud Micro SD card 256 GB

Web Viewer

IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)

Management Software

Smart PSS, DSS, DMSS

Smart Phone

iOS, Android

Certifications

Certifications

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface

Audio Interface

1/1 channel In/Out

Alarm

2 channel In: 5mA 5V DC 1 channel Out: 300mA 12V DC

Electrical

Power Supply

DC 12V (±30%), PoE (802.3af)

Power Consumption

<10.3W

Environmental

Operating Conditions
