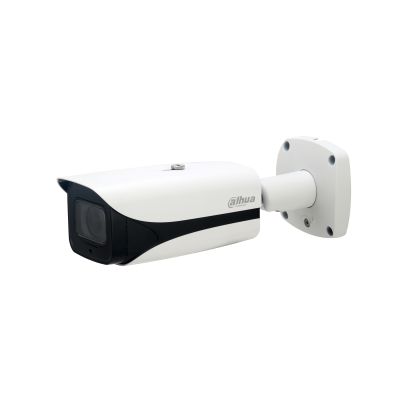

5MP IR Vari-focal Bullet WizMind Network Camera

> 1/2.7” 5Megapixel progressive scan CMOS

>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

>20 fps@2592 × 1944, 50/60 fps@1080P(1920 × 1080)

>WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC

>Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

>7 mm–35 mm motorized lens

>2/1 Alarm in/out, 1/1 audio in/out · Max. IR LEDs Length 120 m

>Micro SD memory, IP67, IK10





Add Wish List Add Compare
Camera
Image Sensor 1/2.7” 5Megapixel progressive scan CMOS
Max. Resolution 2592 (H) × 1944 (V)
RAM/ROM 1 GB/128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s
S/N Ratio > 56 dB
Minimum Illumination 0.003 Lux@F1.3
Illumination Distance Distance up to 120 m (394 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 4(IR LED)
Lens
Lens Type Motorized vari-focal
Mount Type Board-in
Focal Length 7 mm–35 mm
Max. Aperture F1.3( Constant F1.3 throughout the zoom range)
Angle of View H: 31°–9°, V: 23°–7° (2592 × 1944)
H: 32°–9°, V: 18°–5° (2688 × 1520)
Aperture Type Auto (HALL)
Close Focus Distance 0.4 m–2.0 m (1.31 ft–6.56 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 190m(623ft) 76m(249ft) 38m(125ft) 19m(62ft)
T 620m(2034ft) 248m(814ft) 124m(407ft) 62m(203ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan: 0˚–360˚; Tilt: 0˚–90˚; Rotation: 0˚–360˚
Artificial Intelligence
Face Detection Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo;three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
Perimeter Protection Tripwire; intrusion; fast moving (the three functions
support the classification and accurate detection
of vehicle and human); loitering detection; people
gathering; parking detection
People Counting Support the counting of enter number, leave
number, and pass number, and displaying and
outputting yearly/monthly/daily reports.
Support the counting of number in area, and 4 rules
configuration. Count number of people or stay time
and link alarm.
Support queue management, and 4 rules
configuration. Count number of people or stay time
and link alarm
General Intelligence
Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
General Intelligence Object Abandoned/Missing
Heat Map Yes
Video
Compression H.265,H.264,H.264B,H.264H,
MJPEG (only supported by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Streaming Capability 3 Streams
Resolution 2592 × 1944/2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
Frame Rate Main Stream: 2592 × 1944 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
Sub Stream: D1 (1 fps–20/30 fps)
D1 (1 fps–50 fps)
Third Stream: 1080P (1 fps–17 fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 Kbps
Day/Night Auto (ICR)/Color/B/W
BLC Mode BLC/HLC/WDR (120 dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off/On (4 Zone, Rectangle)
Region of Interest Off/On (4 Zone)
Electronic Image Stabilization (EIS) Yes
Smart Illumination Yes
Defog Yes
Flip 0°/90°/180°/270°
Mirror Off/On
Privacy Masking Off/On (4 Area, Rectangle)
Audio
Audio Compression G.711a, G.711Mu, AAC, G.726, G.723
Alarm
Alarm Event No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering;Defocus Detection;scene changing;intrusion;tripwire;abandoned object;missing object;fast moving;parking detection;loitering detection;people gathering;audio detection;people counting;face detection;voltage detection;People counting in area;Stay alarm;People No. exception detection;Queue Management
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Interoperability ONVIF(Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P
User/Host 20 Users
Storage NAS;FTP;SFTP;Dahua Cloud;
Micro SD card 256 GB
Browser IE (versions newer than IE8), Chrome,
Firefox, Safari (versions newer than Safari 12)
Management Software Smart PSS, DSS, DMSS
Mobile Phone iOS, Android
Certifications
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Interface
Audio Interface 1/1 channel In/Out
Alarm 2 channel In: 5mA 5V DC
1 channel Out: 300mA 12V DC
Electrical
Power Supply DC 12V (±30%), PoE (802.3af)
Power Consumption <10.9W
Environmental
Operating Conditions -30° C to +60° C (-22° F to +140° F)/Less than 95% RH
Storage Conditions -40° C to +60° C (-40° F to +140° F)
Protection Grade IP67,IK10
Construction
Casing Metal, plastic
Dimensions 273.2 mm × 95.0 mm × 95.0 mm (10.76” × 3.74” × 3.74”)
Net Weight 1.11 kg (2.44 lb)
Gross Weight 1.51 kg (3.33 lb)
