Dahua DH-IPC-HFW4230MP-4G-AS-I2

main product photo

Share it:

Dahua DH-IPC-HFW4230MP-4G-AS-I2

Dahua
Be the first to review this product
NZ$3,799.00
backorder stock 1
On Backorder
backorder stock 2
ETA 07/01/2025
Click & Collect
FREE pick up at our Penrose Auckalnd store. We will contact you when your order is ready for collection.
Signature Required Delivery
Shipping nationwide. We use NZPOST's Trace & Track courier to securely deliver your order.

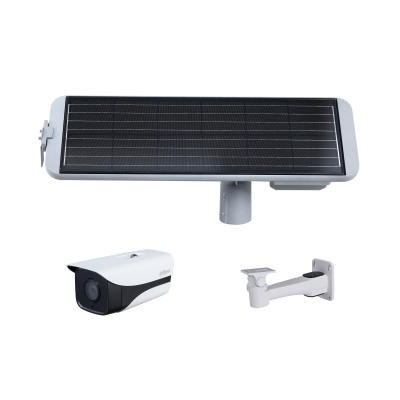

Integrated Solar Monitoring System(Without Lithium Battery)

Solar Power System

> Integrated die casting casing

> Monocrystalline solar panel

> Aluminum alloy frame

> Remote monitoring with APP

> Maximum Power Point Tracking (MPPT) charging controller

> RS-485 communication function

> Electronic protection

4G Network Camera

> 1/2.9” 2Megapixel progressive CMOS

> H.265&H.264 dual-stream encoding

> 25/30fps@2M(1920×1080)

> Day/Night(ICR), 3DNR, AWB, AGC, BLC

> Multiple network monitoring: Web viewer, CMS(DSS/PSS) &DMSS

> Micro SD card slot, up to 256GB

> 3.6mm,6mm fixed lens

> Max. IR LEDs Length 40m

> 4G supported

> IP67



Add Wish List Add Compare
Integrated Solar Power System (without Lithium Battery)
Model DH-PFM364L-D1
Solar Panel
Type Monocrystalline silicon
Max. Power 60W
Solar Cell Efficiency 21%
Max. Mechanical Load 5400Pa
Protection
Over-discharge Protection Voltage 11.1V DC
Low Temperature Charging ≤–10°C (14°F)
Low Temperature Discharging ≤–20°C (–4°F)
Grade IP66
Others Over temperature, overvoltage of the battery, overload, and short circuit
Port
Power Output Φ5.5 mm × Φ2.1 mm × 12 mm(Φ0.22" × Φ0.08" × 0.47")
RS–485 1
General
Main Body Material Die casting aluminum
Installation Pole mount, installed on 76 mm to 96 mm
(Φ3.0"–Φ3.78") poles
Adjustable Angle Horizontal: 0°–360°
Vertical: -75°–80°
Product Dimensions 1149.5 mm × 367.6 mm × 430.2 mm
(45.26" × 14.47" × 16.94")
Packaging Dimensions 1353 mm × 548 mm × 364 mm
(53.27" × 21.57" × 14.33")
Packaging Method 1 pc in each carton
Net Weight 16 kg (35.27 lb)
Gross Weight 22.5 kg (49.60 lb)
Environment
Operating Altitude <3000 m (9842.5 ft)
Applicable Area Areas with daily solar radiation>4.5 h
Operating Temperature –20°C to 60°C (–4°F to 140°F)
Operating Humidity <95% (RH)
Storage Temperature 0°C to 40°C (32°F to 104°F)
Storage Humidity <95% (RH)
Certifications
Certifications CE: EN61000-6-2, EN61000-6-4
FCC: FCC Part 15 Subpart B
2MP 4G IR Bullet Network Camera
Model DH-IPC-HFW4230M-4G-AS-I2
Camera
Image Sensor 1/2.9" 2Megapixel progressive scan CMOS
Effective Pixels 1920(H) × 1080(V)
RAM/ROM 256 MB/32 MB
Scanning System Progressive
Minimum Illumination 0.04 Lux/F2.0 ( Color,1/3 s,30IRE)
0.22 Lux/F2.0 ( Color,1/30 s,30IRE)
0 Lux/F2.0 (IR on)
S/N Ratio More than 56 dB
IR Distance Distance up tp 40 m (131.2 ft)
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens
Lens Type Fixed
Mount Type M12
Focal Length 3.6 mm (6 mm optional)
Max. Aperture F2.0
Angle of View H: 82.5° (51.5°), V: 44° (29.5°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance 0.9 m (2 m)
29.5 ft (6.56 ft)
DORI Distance Lens Detect Observe Recognize Identify
3.6 mm 53 m (174 ft) 21 m (69 ft) 10 m (33 ft) 5 m (17 ft)
6 mm 80 m (262 ft) 32 m (105 ft) 16 m (52 ft) 8 m (26 ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range N/A
Intelligence
Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
IVS Tripwire, Intrusion
Video
Compression H.265/H.264H/MJPEG (Sub Stream)
Smart Codec Support H.265/H.264
Streaming Capability 2 Streams
Resolution 1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576)/720P (1280 × 720)/D1 (704 × 576)/VGA (640 × 480)/CIF (352 × 288)
Frame Rate Main Stream: 1080P@25 fps
  Sub Stream: D1@25 fps
Bit Rate Control CBR/VBR
Bit Rate H.264: 32–10240 Kbps; H.265: 12–6400 Kbps
Day/Night Auto ICR
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto
Noise Reduction 3D DNR
Motion Detection Off/On (4 Zone, Rectangle)
Region of Interest Off/On (4 Zone)
Electronic Image Stabilization(EIS) N/A
Smart IR Yes
Defog N/A
Digital Zoom N/A
Flip 0°/90°/180°/270°
Mirror Off/On
Privacy Masking Off/On (4 Areas, Rectangle)
Audio
Compression G.711a/G.711Mu/AAC/G.726
Network
Ethernet RJ-45 (10/100Base-T)
Mobile Communication 4G
Operating band Model 1:
TDD-LTE: Band38/39/40/41
FDD-LTE: Band1/3/5/8
WCDMA: Band1/8
TD-SCDMA: Band34/39
EVDO/CDMA1X: BC0
GSM: Band3/8
Model 2:
FDD-LTE: Band1/2/3/4/5/7/8/20
UMTS: Band1/2/5/8
GSM: 850/900/1800/1900
Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast/Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS
Local PC for instant recording
Mirco SD card 256 GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Smart Phone IOS, Android
Interface
Audio Interface 1/1 channel In/Out
Alarm 2 channels In: 500mA 5VDC
2 channels Out: 300mA 12VDC
Electrical
Power Supply DC12V±30%
Power Consumption 3.6W, 9.5W (IR on);6W (4G on, IR off)
Environmental
Operating Conditions –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Storage Conditions –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal+Plastic
Dimensions 194.4 mm × 96.6 mm × 89.5 mm (7.65" × 3.8" × 3.52")
Net Weight 0.7 kg (1.54 lb)
Gross Weight 0.8 kg (1.76 lb)
Wall Mount Bracket
Model DH-PFB121W
General
Material Aluminum
Dimension (W×H×D) 58 mm × 88 mm × 190.5 mm (2.28" × 3.46" × 7.50")
Weight 0.24 kg (0.53 lb)
Load Bearing 1 kg (2.2 lb)
Color White
Operating Temperature –40°C to +60°C (–40°F to +140°F)
Humidity <90% RH
Applicable Model Please check "Accessory Selector" on DAHUA website
