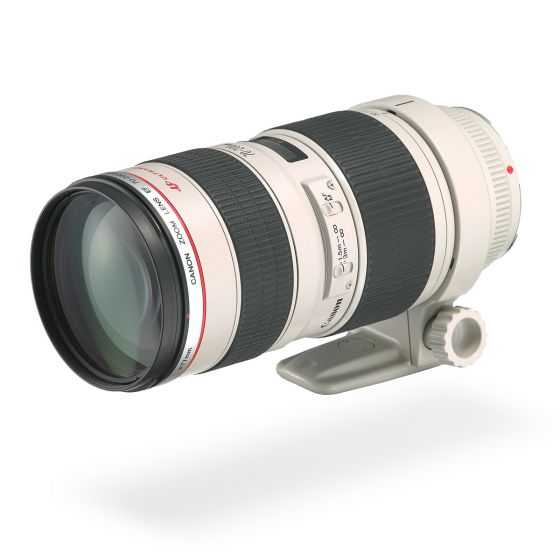

Canon EF 70-200mm f2.8L USM Lenses
Canon EF 70-200mm f2.8L USM Lenses
.
One of the finest telephoto zoom lenses in the EF line, comparable to a single focal length lens. It has four UD-glass elements to correct chromatic aberrations.
The newly-designed multiple zoom groups for inner focusing bring high image quality throughout the entire zooming range. Compatible with Extender EF 1.4x and 2x.
|
Weight (g): |
|
1,310 |
|
Filter Diameter (mm): |
|
77 |
|
Maximum Magnification (x): |
|
0.16 (at 200mm) |
|
Magnification with Extension Tube EF12: |
|
0.22-0.06 |
|
Magnification with Extension Tube EF25: |
|
0.41-0.14 |
|
Diagonal Angle of View: |
|
34° - 12° |
|
Horizontal angle of view: |
|
29°-10° |
|
Lens Construction (elements/groups): |
|
18/15 |
|
Max. Diameter x Length (mm): |
|
84.6x193.6 |
|
Minimum Aperture: |
|
32 |
|
No. of Diaphragm blades: |
|
8 |
|
Closest Focusing Distance (m): |
|
1.5 |
|
AF Actuator: |
|
USM |
|
EF1.4x AF (Y/N): |
|
Y |
|
EF1.4x Focal length (mm): |
|
98-280 |
|
EF1.4x f-stop (f): |
|
4-45 |
|
EF1.4x Maximum magnification (x): |
|
0.22 |
|
EF2.0x AF (Y/N): |
|
Y |
|
EF2.0x Focal length (mm): |
|
140-440 |
|
EF2.0x f-stop (f): |
|
5.6-64 |
|
EF2.0x Maximum magnification (x): |
|
0.33 |
|
With Extender EF1.4x: |
||
|
With Extender EF2.0x: |
||
|
Hard Case: |
|
LH-D24B |
|
Lens Hood: |
|
ET-83 |
|
ud_4: |
|
ud_4 |
|
ir: |
|
ir |
|
ultrasonic: |
|
ultrasonic |
|
ftm: |
|
ftm |
|
All data based on Canon's Standard Test Method: |
||
|
Subject to change without notice: |
||
